How does a “sewing machine” work slow motion

Sewing machines are engineering marvels that combine accuracy and creativity to realize our ideas made of fabric. Many of us have seen the rhythmic, hypnotic dance of the needle and thread as they gracefully weave through the fabric, but have you ever considered the complex mechanics toiling away below the surface? This essay aims to demystify the inner workings of a sewing machine so that readers will have a greater understanding of this indispensable equipment in the fashion and textile industries.

The Basis: Anatomy of a Sewing Machine

Let’s develop a fundamental understanding of the sewing machine’s key components before we begin the slow-motion examination. Consider the sewing machine as a symphony of components, each of which is essential to the smooth production of stitches.

The conductor of the sewing machine, the needle directs the thread into the fabric and creates stitches. It moves rhythmically up and down.

Throat Plate:

The throat plate is where the bobbin and needle come into contact. The feed dogs, which facilitate fabric mobility, are housed there.

Feed Dogs:

Small, sharp metal teeth that stick out through the neck plate are known as “feed dogs.” They precisely move the fabric ahead while holding it in place.

The bottom thread is kept on a small, round spool called a bobbin. Its thread interlocks with the upper thread to make stitches as it rests below the throat plate.

Tension discs control how taut the upper thread is, resulting in consistent stitches.

Presser Foot:

To maintain equal fabric feeding, the presser foot presses the fabric against the throat plate. It is a solid platform.

Needle Clamp:

This component secures the needle in place and links it to the machine’s drive system.

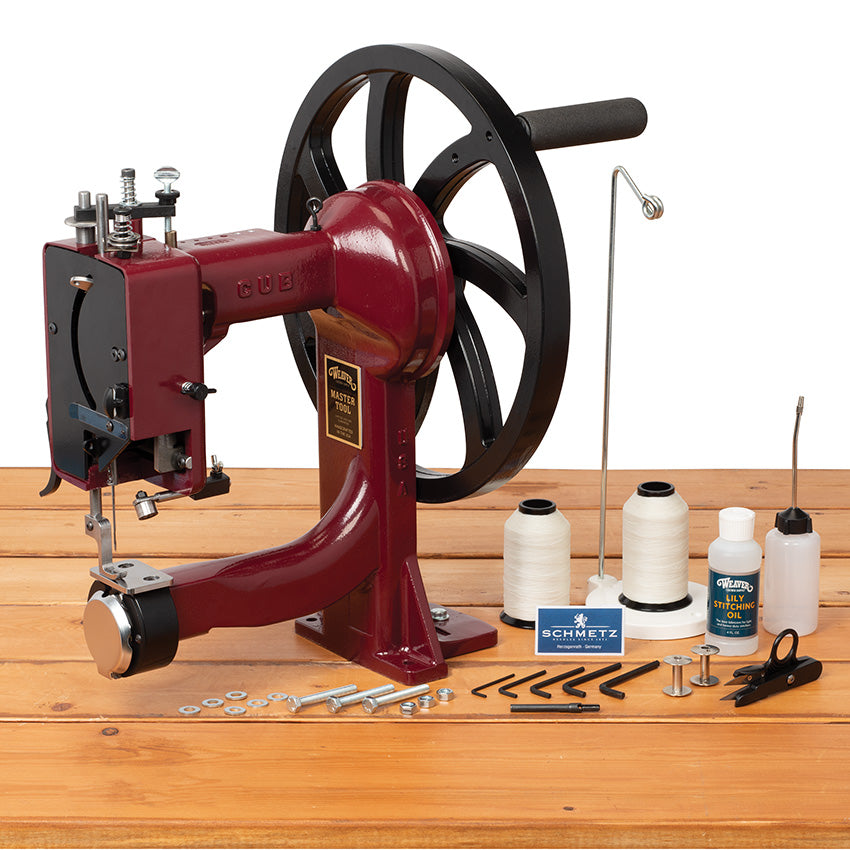

Handwheel:

A revolving wheel that enables manual control of the needle’s up position is the handwheel.

With this foundation in place, let’s examine in greater detail how a sewing machine functions in slow motion.

Stitch Formation in Slow Motion

Inserting a thread:

The user threads the upper thread slowly through the threading path of the machine, making sure it goes between the tension discs and the needle’s eye. In parallel, the thread is wound onto the bobbin to secure the bottom thread.

Setting up the Fabric:

The fabric is placed beneath the presser foot with the edge of the fabric aligned with the required seam allowance. In order to secure the cloth, the presser foot is lowered.

Activating the Machine:

With gentle precision, the operator engages the machine, usually through a foot pedal or electronic controls. As the machine begins to operate, we can observe the following movements:

Needle Descent:

In a slow-motion portrayal, we witness the needle descending from its highest point to its lowest point, piercing the fabric with grace. The feed dogs begin to move the fabric forward gently.

Thread Engagement:

As the needle rises, it creates a small loop with the upper thread, which the rotating hook (part of the bobbin case) catches, interlocking it with the bobbin thread.

Loop Formation:

The development of the loop is seen in amazing detail by the slow-motion camera. It’s amazing to observe how the upper and lower threads lock together to form the stitch’s framework.

Stitch Design

The needle’s up-and-down movement continues in slow motion. The cloth is moved forward by the feed dogs with each cycle, which enables the needle to create more stitches. The settings on the machine, which can be changed as needed, control the stitch length.

Flow Tension:

The tension discs’ function in preserving the ideal balance between the upper and lower threads can be seen by taking a closer look at them. The threads are tightened as the stitch is made to ensure that it is neither too loose nor too tight.

Seam Completion:

The slow-motion representation allows us to see the seam’s gradual development. Together with the feed dogs, the presser foot ensures even feeding of the fabric, preventing bunching or puckering.

Trimming of threads:

The operator stops the machine as they approach the end of the seam, and the slow-motion camera records the challenging thread-trimming procedure. A tidy and clean finish is left when the needle ascends and the thread is clipped.

The Importance of Timing in Comprehending the Inherent Magic

Sewing machine action may appear simple in the slow-motion sequence, but the real magic is in the exact synchronization of each component. Timing is the coordination of these components to make sure that the needle, bobbin, and feed dogs operate flawlessly together to produce consistent and lovely stitches.

Timing of Needle and Feed Dogs:

Slow motion reveals that the fabric is advanced by the feed dogs exactly as the needle descends. The fabric glides smoothly and the needle is kept from breaking thanks to this synchronization.

Timing between the hook and the needle:

The rotation of the hook, which catches the upper thread and creates the stitch, is exactly timed to the motions of the needle. For well-defined stitches to be created, this precise time is necessary.

Timing of tension:

Another feat of timing is the function of the tension discs in controlling thread tension. Slow motion allows us to see how the discs regulate the upper thread’s flow to keep it taut at all times.

Dog Feeding Time:

Another crucial element of time is the rhythm with which the feed dogs move the fabric. To achieve equal and smooth fabric feeding, their movements must be coordinated with the needle.

Care and Maintenance

A sewing machine’s complex mechanisms need to be properly cared for and maintained in order to function properly. Some crucial upkeep duties include:

Cleaning:

Maintain the machine’s cleanliness by regularly clearing the throat plate, feeding dogs, and bobbin region of lint and dirt.

Oil:

Lubricate moving parts with sewing machine oil to minimize friction and wear.

Tension Modification:

To maintain equal stitches, periodically check and adjust the thread tension.

Replace needles:

Regularly replace the needle, especially if it starts to dull or bend.

Thread Selection:

Select the best thread for your clothes, taking into account elements like weight and kind.

Conclusion:

With their complex internal mechanisms, sewing machines are both useful instruments and works of mechanical art. The precise timing and synchronization of a sewing machine’s parts are demonstrated through a slow-motion examination of its operations. The dance makes the stitches that give life to our fabric creations of the needle, bobbin, feed dogs, and tension discs.

Understanding a sewing machine’s inner workings helps you appreciate this priceless equipment more and gives you more control over the stitching process. Your machine’s durability and dependable performance can be ensured by properly handling and maintaining it. So, the next time you use your sewing machine, you can be in awe of the myriad mechanics that come together to turn your imaginative picture into a physical object.
